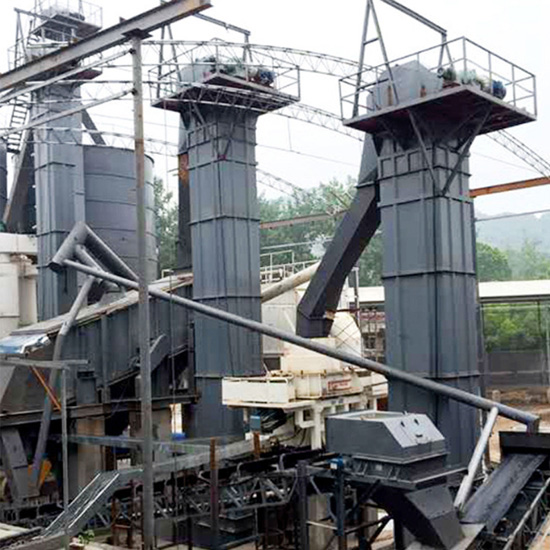

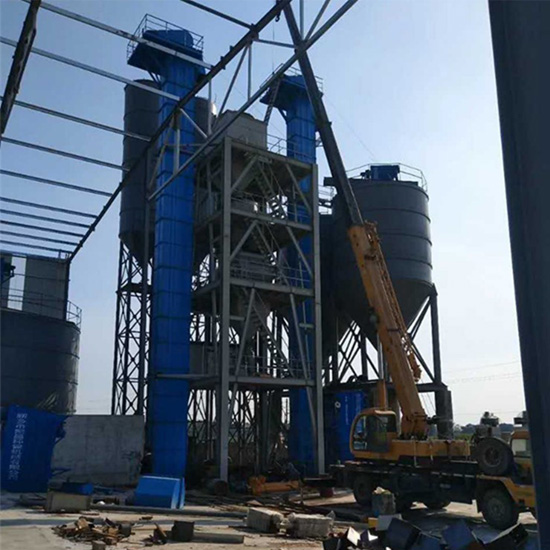

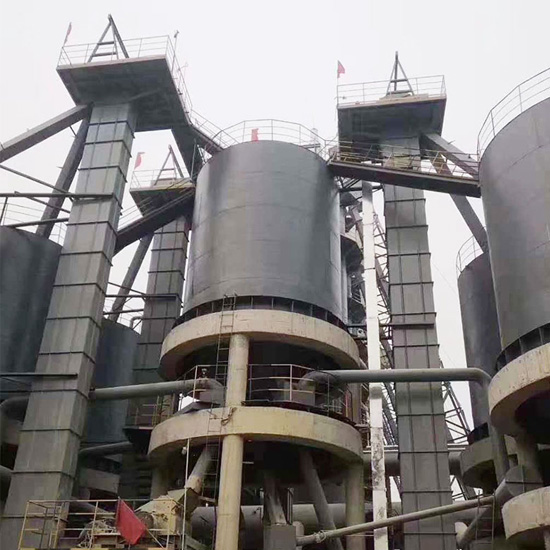

TH type bucket elevator

One of the most efficient ways to elevate bulk materials vertically is with a bucket elevator. A Bucket Elevator consists of a series of buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the unit. The buckets are located in a casing or housing to contain the material. Bulk materials are loaded into each bucket as the bucket moves past an inlet point. Designs and manufactures a wide variety of bucket elevators based on the characteristics of the bulk material and the process requirements.
Chain carry the buckets.
Temperature for the being conveyed material≤ 250 degree.
Description
working principle
Technical Parameters
Related products
inquiry
Description
One of the most efficient ways to elevate bulk materials vertically is with a bucket elevator. A Bucket Elevator consists of a series of buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the unit. The buckets are located in a casing or housing to contain the material. Bulk materials are loaded into each bucket as the bucket moves past an inlet point. Designs and manufactures a wide variety of bucket elevators based on the characteristics of the bulk material and the process requirements.

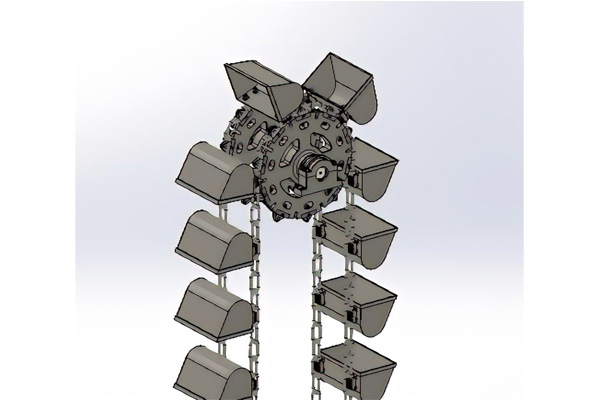

working principle
In simple terms, bucket elevators vertically convey bulk materials. They are considered similar to conveyor belts, with the greatest difference being that bucket elevators move material using buckets attached to a rotating belt or chain. The buckets work to pick up material, move it to the desired endpoint, discharge material, and finally, return to the starting point to pick up a new load.

Bucket elevator configurations are engineered based on the application, material, required horsepower, and elevator height. Configuration options include centrifugal bucket elevators and continuous bucket elevators, with both models including belt and chain options.



Technical Parameters
TH Chain Bucket Elevator TH160 TH200 TH250 TH315 TH400 TH500 TH630
Hopper Type ZH SH ZH SH ZH SH ZH SH ZH SH ZH SH ZH SH
Capacity/(m³/h) 15 25 18 29 31 48 35 60 60 94 75 118 114 185
Buckets Volume (L) 1.2 1.9 1.5 2.4 3.0 4.6 3.75 6.0 5.9 9.5 9.3 15.0 14.6 23.6
Pitch of buckets (mm) 500 512 688
Buckets Speed/(m/s) 1.2 1.4 1.5
Drive Sprocket Speed(r/min) 69.71 63.22 44.11 42.5 37.6 35.8 31.8
Max. Feeding size(mm) 20 25 30 35 40 50 60

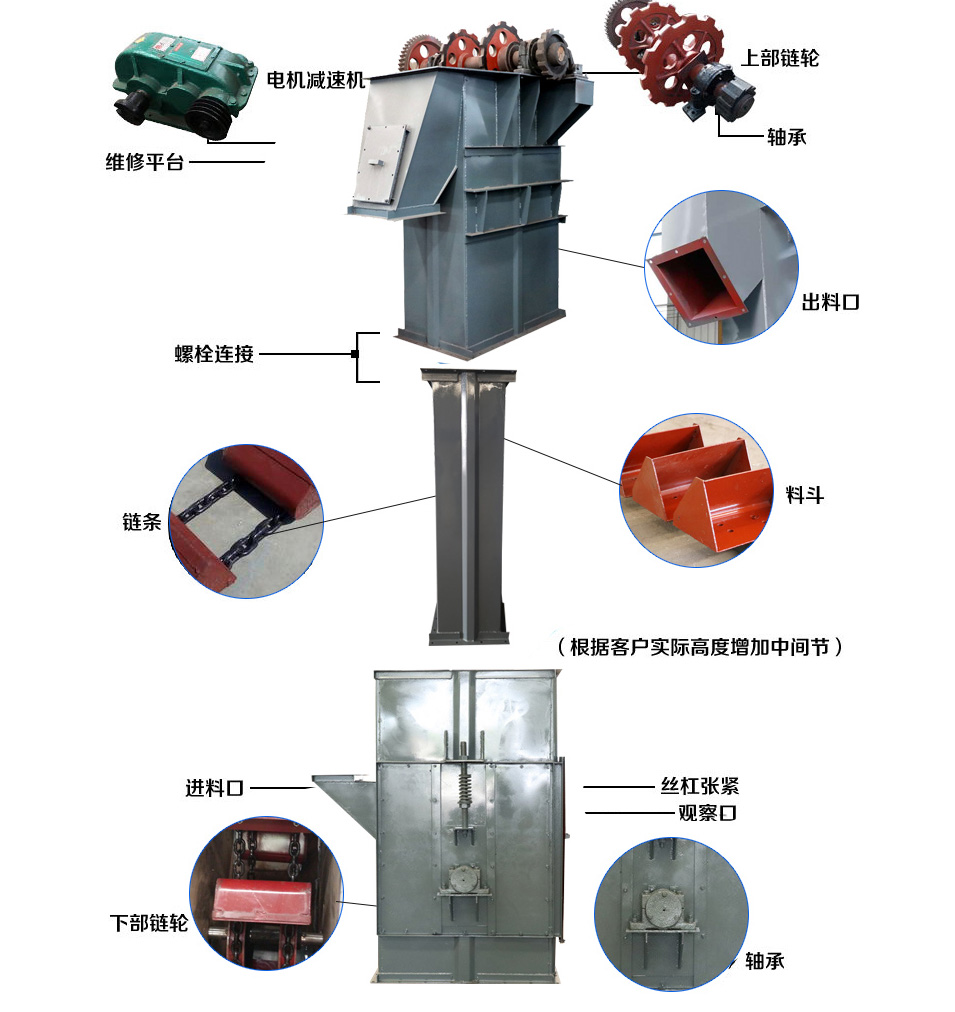

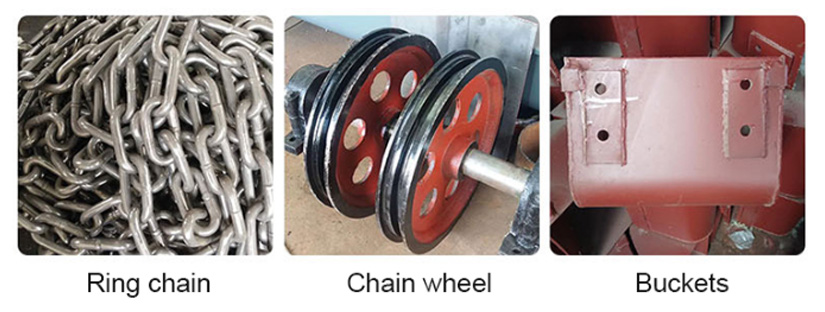

Internal structure for TH type bucket elevator

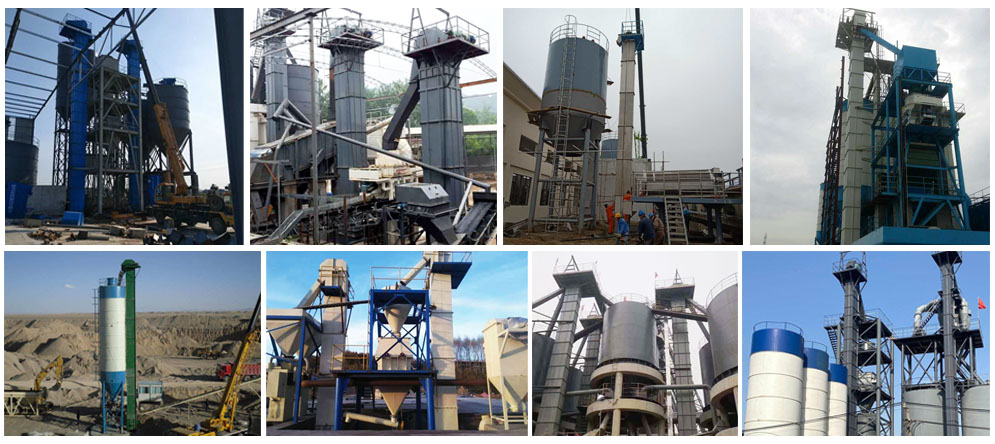

Usage Scenario

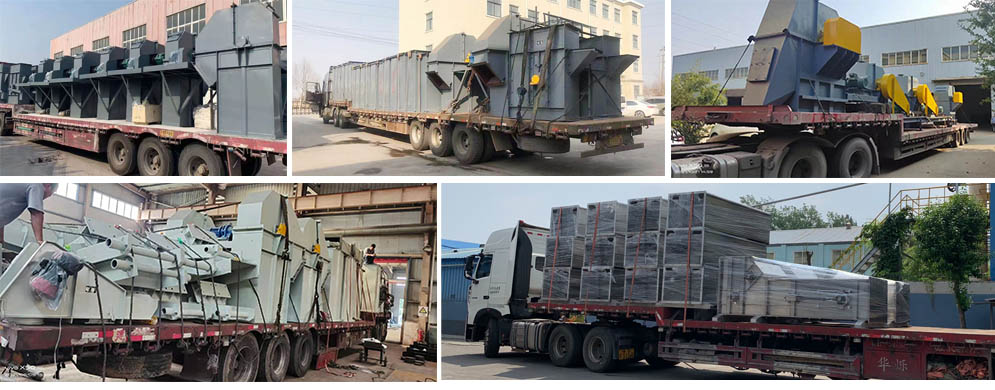

Delivery and packaging
