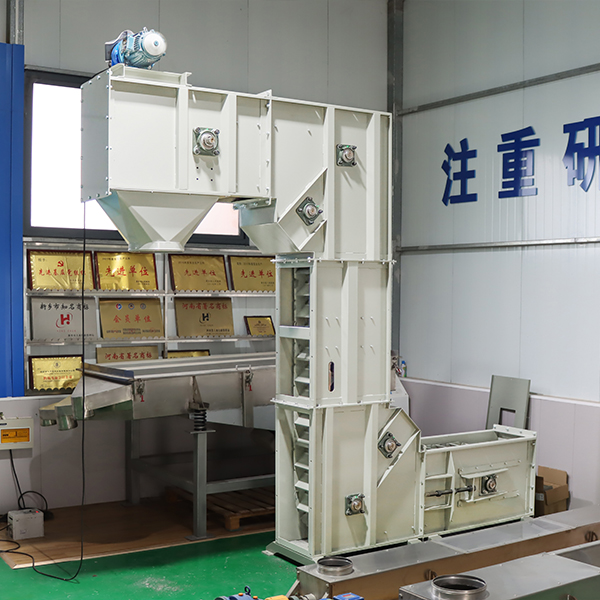

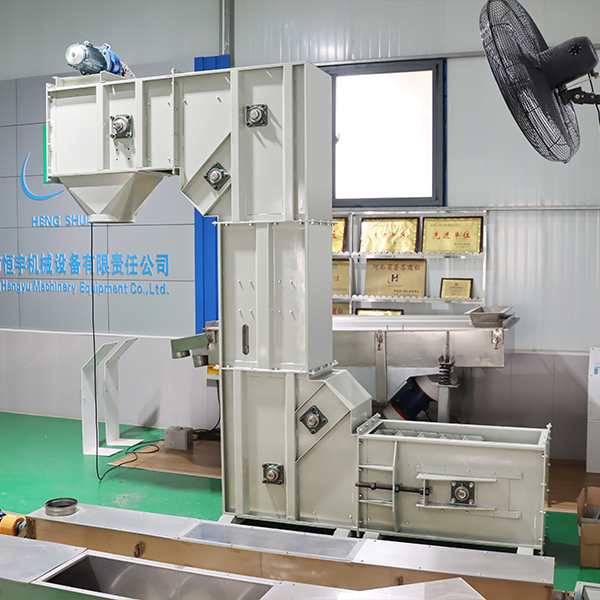

High Speed Z Type Bucket Elevator Conveyor

Z-type bucket elevators, also known as zig-zag elevators, are designed with a series of intermediate pulleys that allow the conveyor to change direction and form a “Z” shape. This configuration enables the elevator to convey materials horizontally, vertically, and then horizontally again, making it suitable for applications with limited space or where multiple discharge points are required. Z-type bucket elevators are commonly used in industries such as packaging, pharmaceuticals, and food processing, where flexibility and compact design are crucial. Z type bucket elevator for advatage: Reliable and silent operation; Bucket overlapping mechanism at feeding to avoid product loss; High quality chain and sprockets; Modular design; Buckets automatically stops if jam detected; Variable speed operation; Optional; Multiple discharge points; All stainless steel construction; Automatic cleaning system.

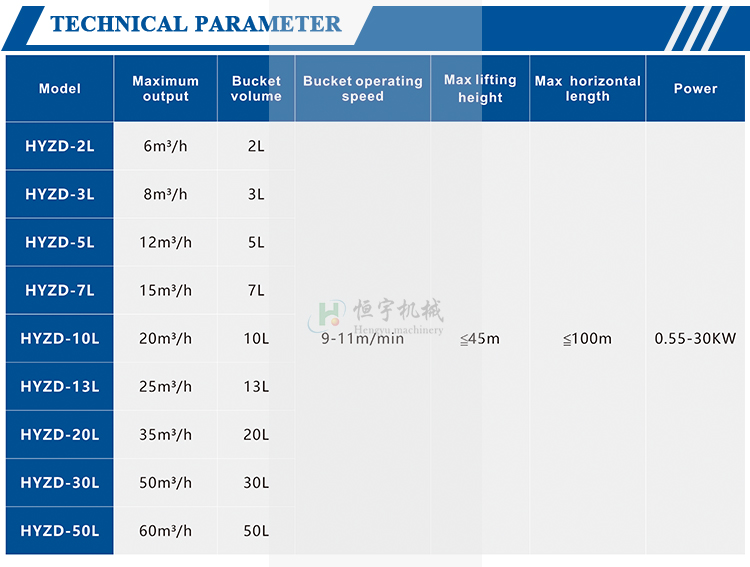

ZT-2L

ZT-3L

ZT-5L

ZT-7L

Send Email

Chat Now

Share With:

Description

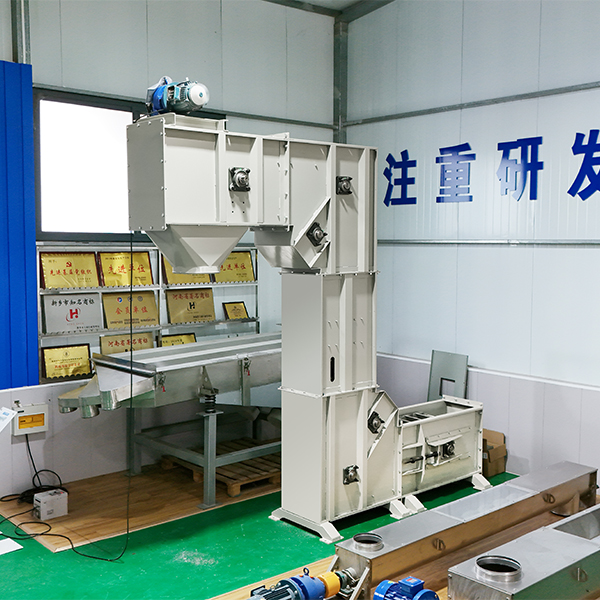

Z-type bucket elevator is a kind of high-efficiency lifting and conveying equipment that drives the hopper to transport and lift materials through a chain. It is similar to the vertical bucket elevator, but there are differences in the reclaiming, running track, and unloading method.

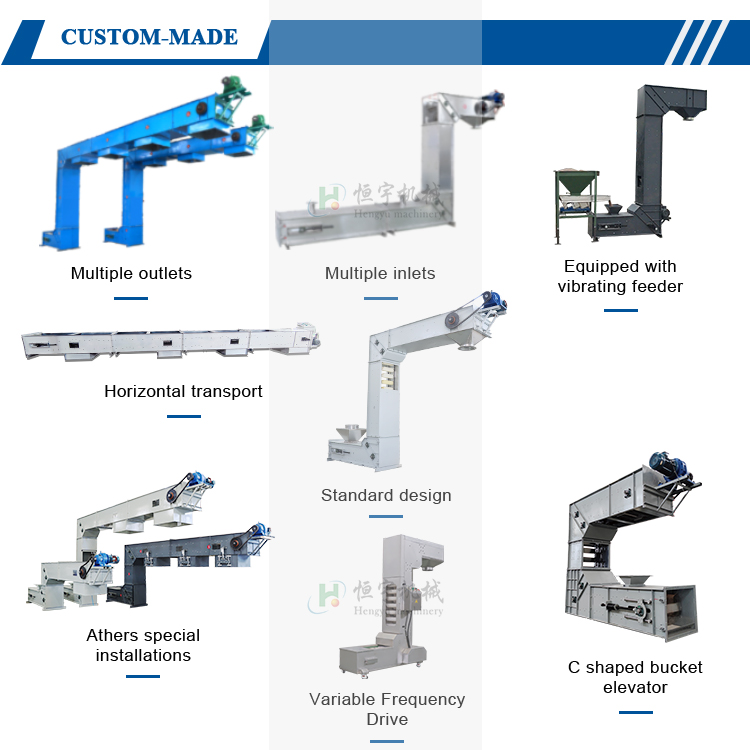

Additionally, our Bucket Elevators stand out compared with our competitors because they are completely modular, have pivoting buckets and can have multiple inlets and outlets. Bucket Conveyors are designed for heavy-duty operations and long lifespans. They can be delivered in powder-coated carbon-steel, stainless-steel or wet environment versions.
Our Bucket Elevators with multiple outlets feature selective bucket-tipping capabilities. This is accomplished by an air-actuated tipping ramp. The last tipping ramp is always in a fixed position, ensuring that all buckets are emptied.
